| Model |

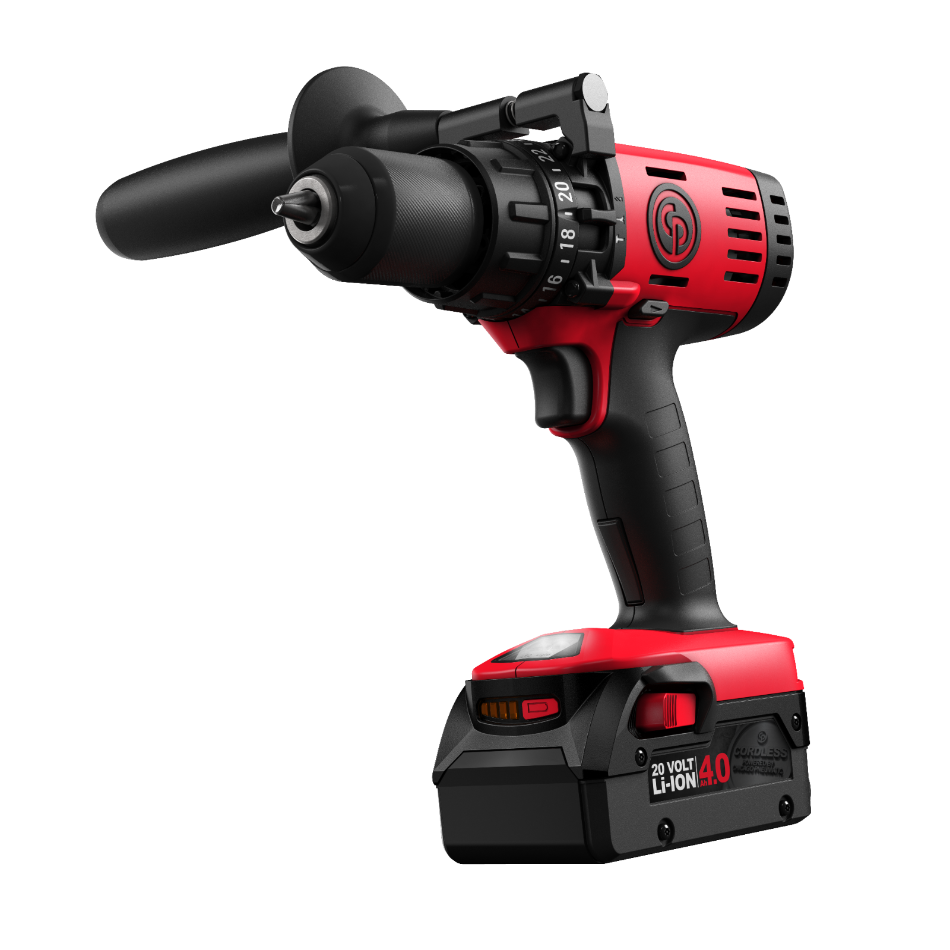

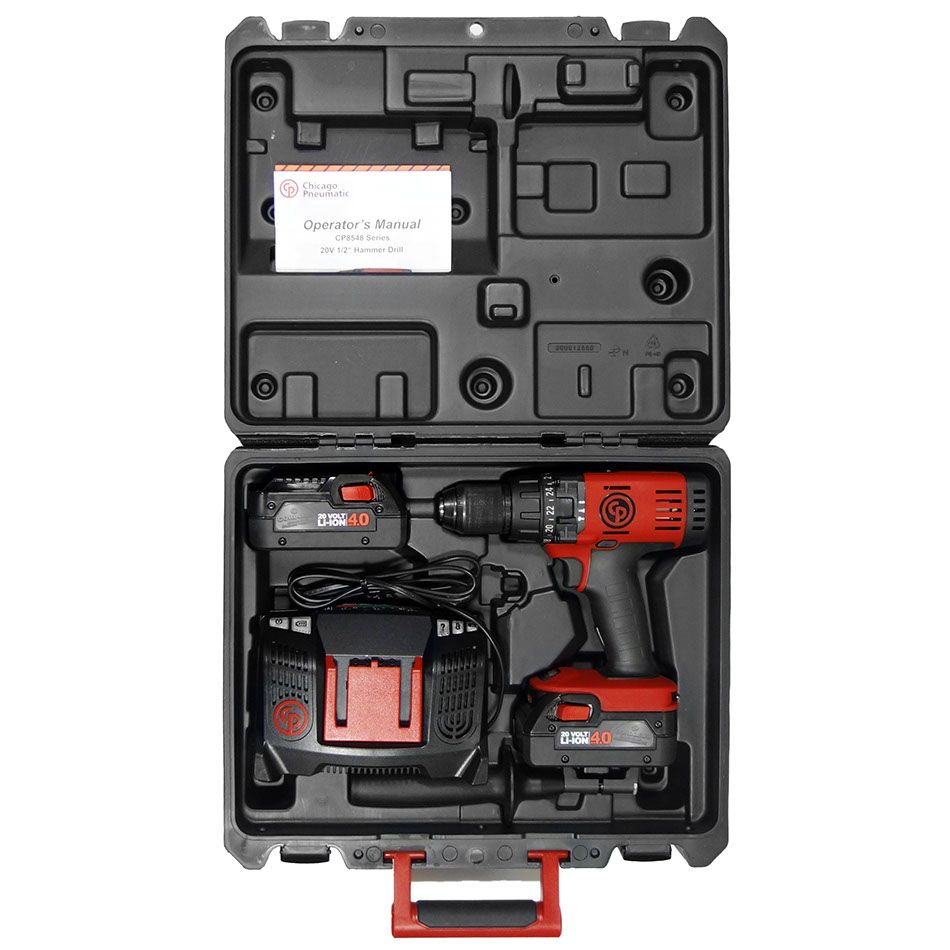

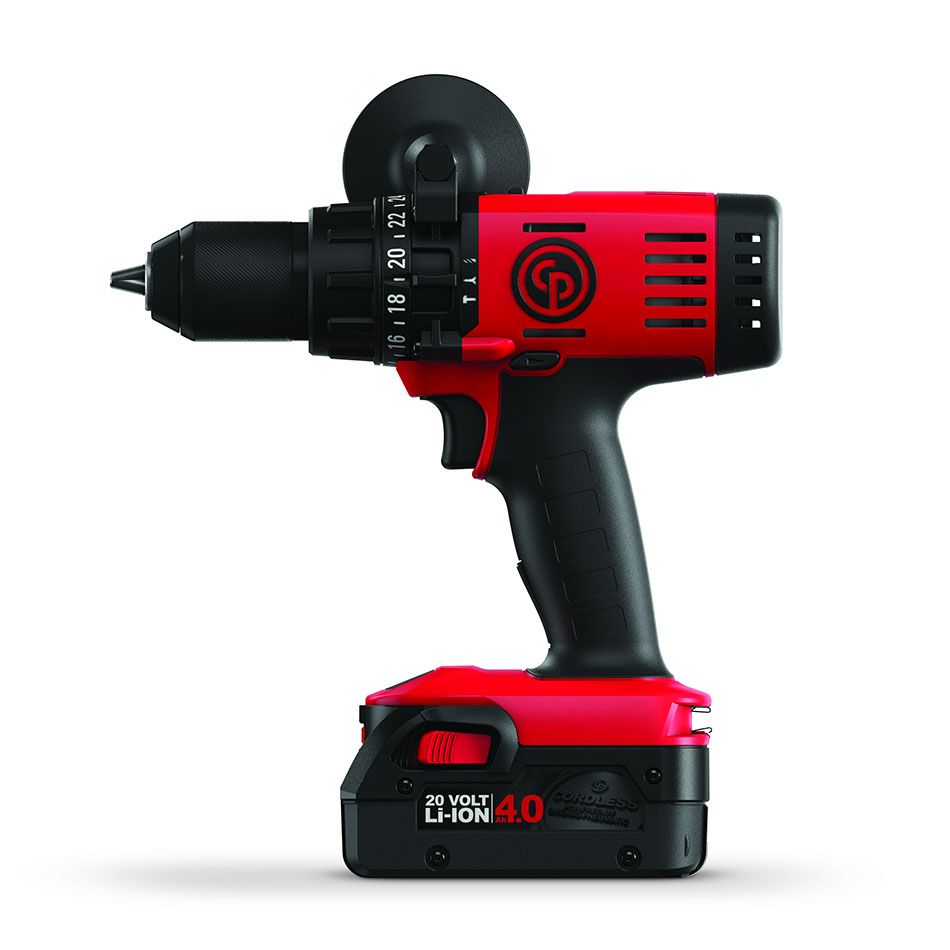

CP8548 Pack |
|
| Part number |
8941085480 |
|
| Battery type |
4Ah 20V Lithium-ion |
|
| Battery voltage |
20 V |
|
| Chuck size |
1.5 – 13 mm mm |
1/16″ – 1/2″ “ |
| Drilling capacity in brick & tile |
16 mm |
0.63 “ |
| Drilling capacity in steel |
13 mm |
1/2 “ |
| Drilling capacity in wood |
55 mm |
2.16 “ |
| European Directives |
Machinery (2006/42/EC), RoHs (2011/65/EU), EMC (2014/30/EU) |
|
| European Sound standard |
EN62841 |
|
| European Standards |
EN 62841-1:2015; EN 62841-2-1:2018; EN 55014-1:2017; EN 55014-2:2015; EN50581:2012 |
|
| Free speed |
0 – 1600 rpm rpm |
|
| Free speed 1st gear |
0 – 450 rpm rpm |
|
| Free speed 2nd gear |
0 – 1600 rpm rpm |
|
| Length |
240 mm |
9.6 “ |
| Max torque |
82 Nm |
60 ft.lbs |
| Min. ambient operating temperature |
-18 ; 50 °C |
|
| Min. ambient storage temperature |
0 ; 40 °C |
|
| Net weight |
2.4 kg |
5.3 lb |
| Percussion under load 1st gear |
7200 /min. |
|
| Percussion under load 2nd gear |
25600 /min. |
|
| Recommended max. ambient charging temperature |
10 ; 38 °C |
|
| Sound Power |
99 db(A) |
|
| Sound pressure |
88 db(A) |
|
| Square drive |
13 mm |
|
| Stall torque |
82 Nm |
60 ft.lbs |
| Vibration ISO |
EN62841 |
|
| Vibration uncertainty (K) |
1 1/2 m/s² |
|
| Weight without battery |
1.68 kg |
3.7 lb |
| Wood screws (without pre-drilling) |
8 mm |
5/16 “ |
