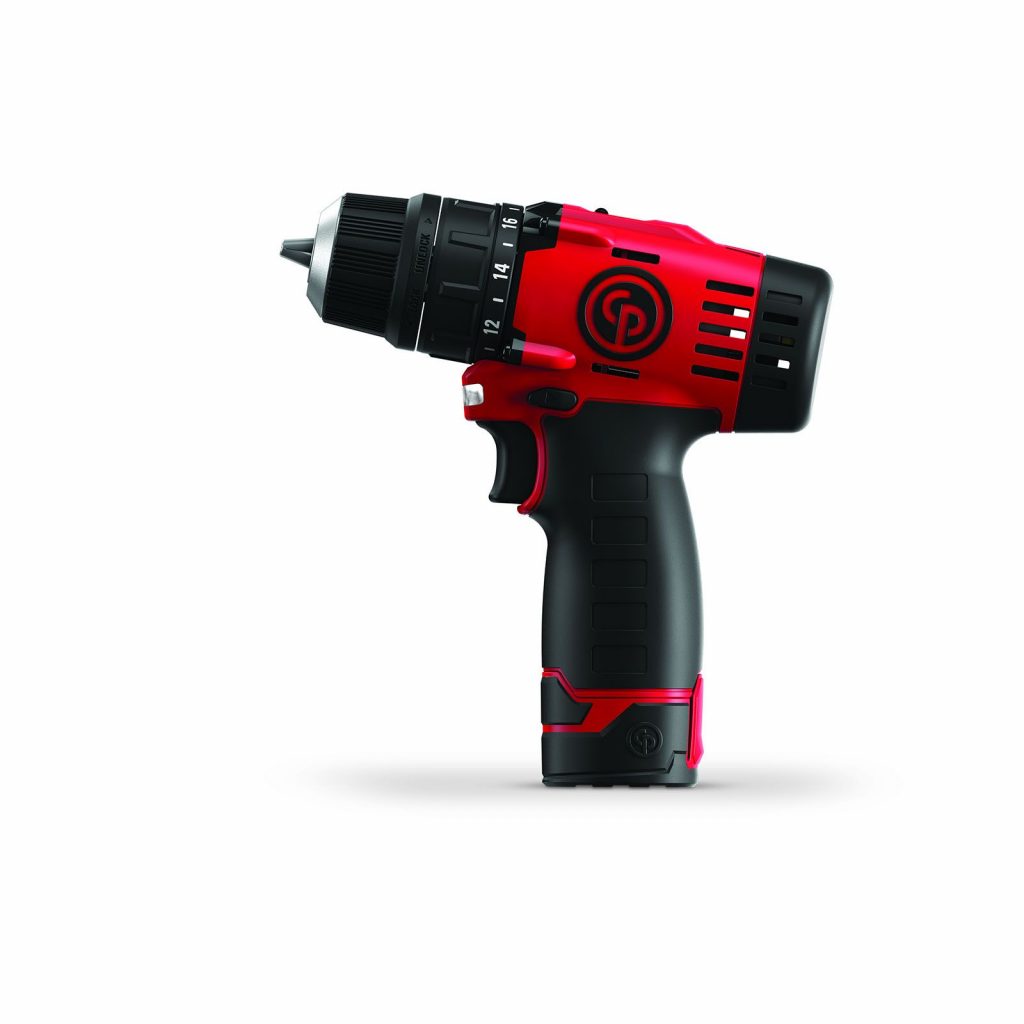

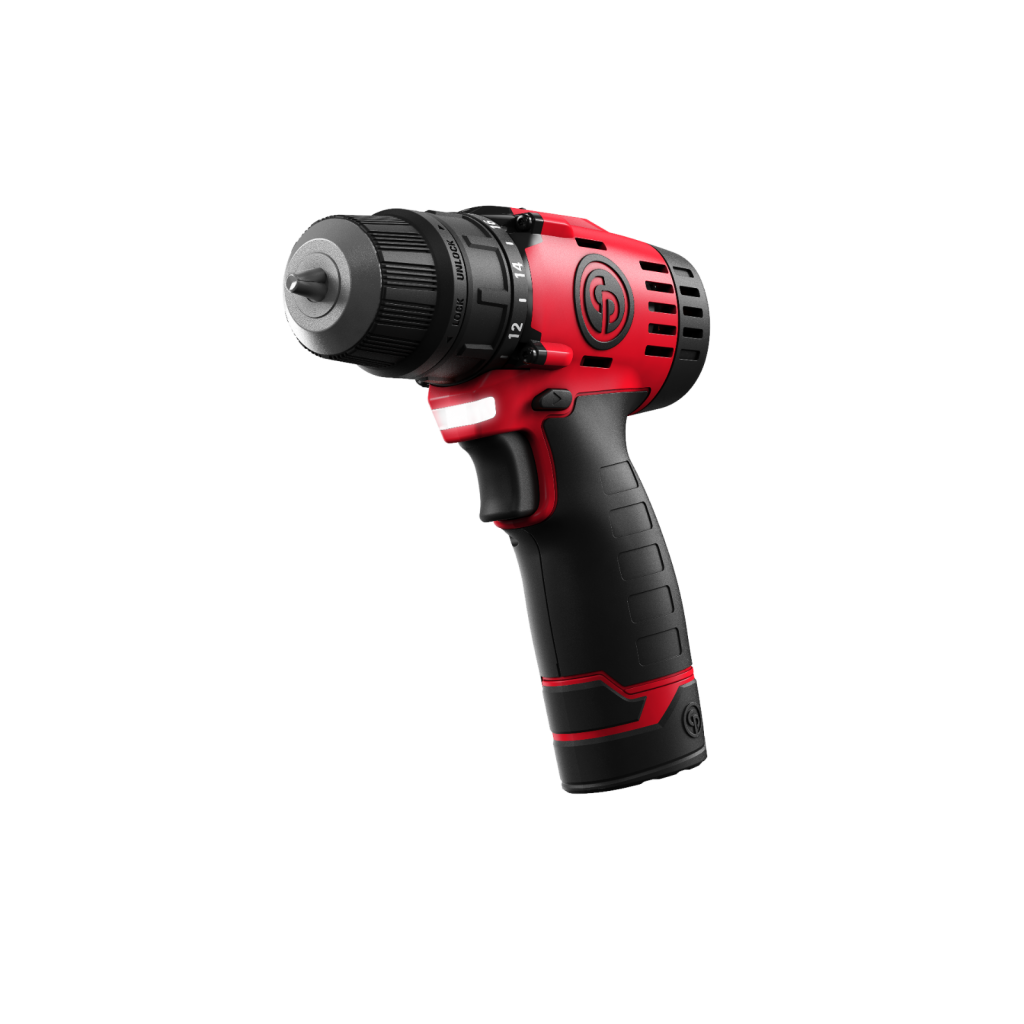

| Model |
CP8528 Pack |
|
| Part number |
8941085280 |
|
| Battery type |
1,5Ah 12V Lithium-ion |
|
| Battery voltage |
12 V |
|
| Chuck size |
1.5 – 10 mm mm |
1/16″ – 3/8″ “ |
| Drilling capacity in brick & tile |
10 mm |
0.39 “ |
| Drilling capacity in steel |
10 mm |
0.39 “ |
| Drilling capacity in wood |
20 mm |
0.78 “ |
| European Directives |
Machinery (2006/42/EC), RoHs (2011/65/EU), EMC (2014/30/EU) |
|
| European Sound standard |
EN62841 |
|
| European Standards |
EN 60745-1:2009 + A11:2010, EN 60745-2-2:2010, EN 55014-1:2017, EN 55014-2:2017, EN50581-1:2012 |
|
| Free speed |
0 – 1500 rpm rpm |
|
| Free speed 1st gear |
0 – 350 rpm rpm |
|
| Free speed 2nd gear |
0 – 1500 rpm rpm |
|
| Length |
175 mm |
7 “ |
| Max torque |
34 Nm |
24 ft.lbs |
| Net weight |
1.2 kg |
2.62 lb |
| Sound Power |
80 db(A) |
|
| Sound pressure |
69 db(A) |
|
| Sound uncertainty |
3 db(A) |
|
| Square drive |
10 mm |
|
| Stall torque |
34 Nm |
24 ft.lbs |
| Vibration ISO |
EN62841 |
|
| Vibration uncertainty (K) |
1 1/2 m/s² |
|
| Weight without battery |
1 kg |
2.2 lb |
| Wood screws (without pre-drilling) |
6 mm |
0,23 “ |
