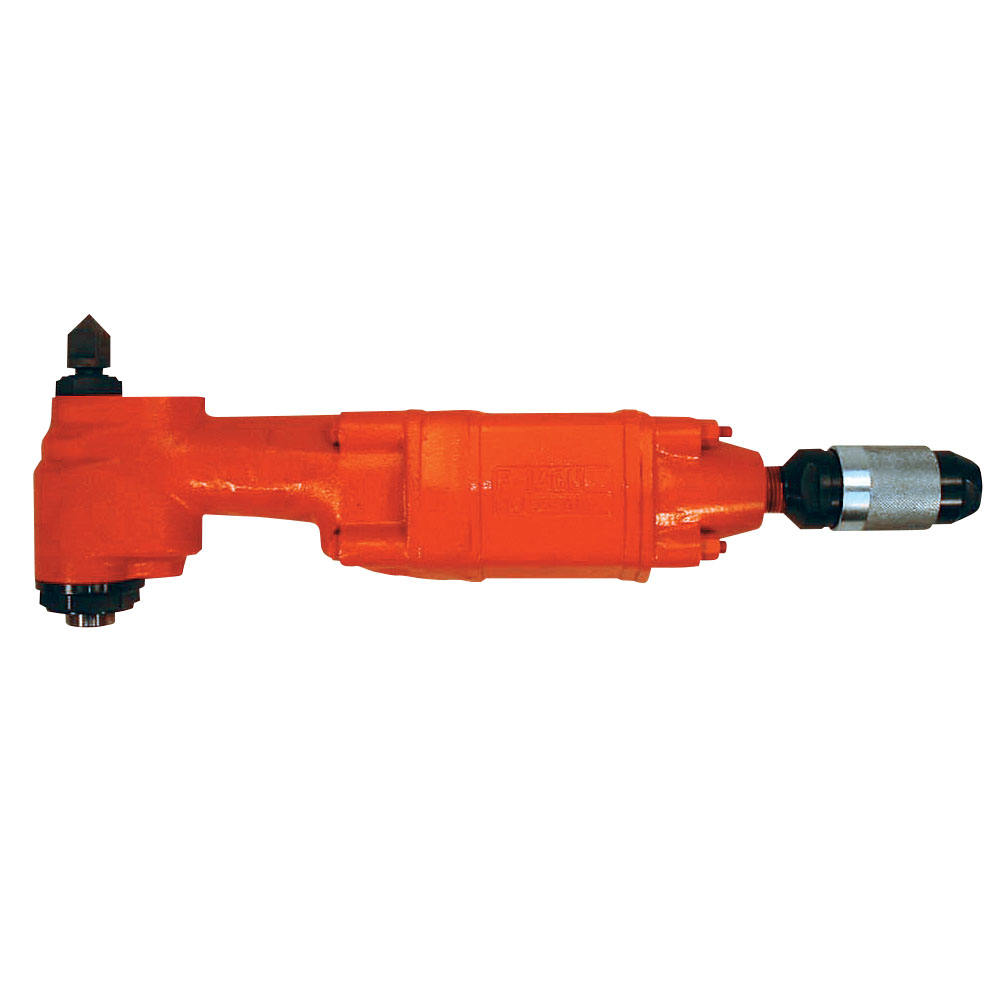

F-14CN E
| Part number | 5412052073 | |
| Model | F-14CN E | |
| Spindle or chuck type | M.T.1 | |
| Chuck capacity | 14 mm | 14 mm” |
| Drilling capacity | 14 mm | 9/16″ |
| Reaming/Tapping capacity | 9.5 mm | 3/8″ |
| SideToCenter_mm | 24 mm | 15/16″ |
| Free speed | 1000 rpm | |
| Power | 740 W | |
| Stall torque | 31.4 Nm | 23.1 ft.lbs |
| Feed length | 38 mm | 1 1/2″ |
| Net weight | 4.6 kg | 10.1 lb |
| Length | 410 mm | 16.1″ |
| Free speed air consumption | 38 l/s | 80.5 cfm |
| Min. hose size | 12.7 mm | 1/2″ |
| Sound pressure | 101.7 db(A) | |
| Sound Power | 112.7 db(A) | |
| Vibration α (ISO-28927-5) | < 2.5 m/s² | |
| Vibration K (ISO-28927-5) | 0.5 m/s² | |
| Vibration (ISO-20643) | 6 m/s² | |
| Vibration K (ISO-20643) | 1.8 m/s² | |
