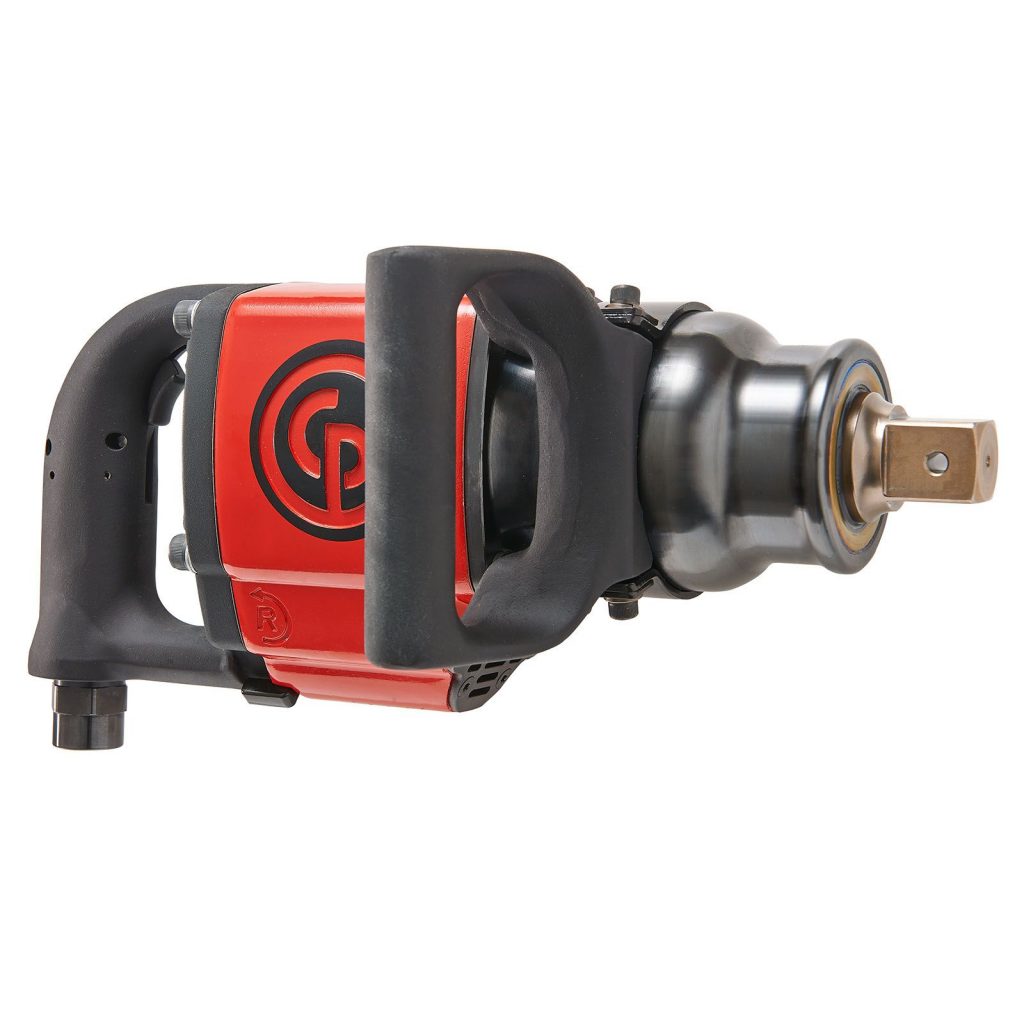

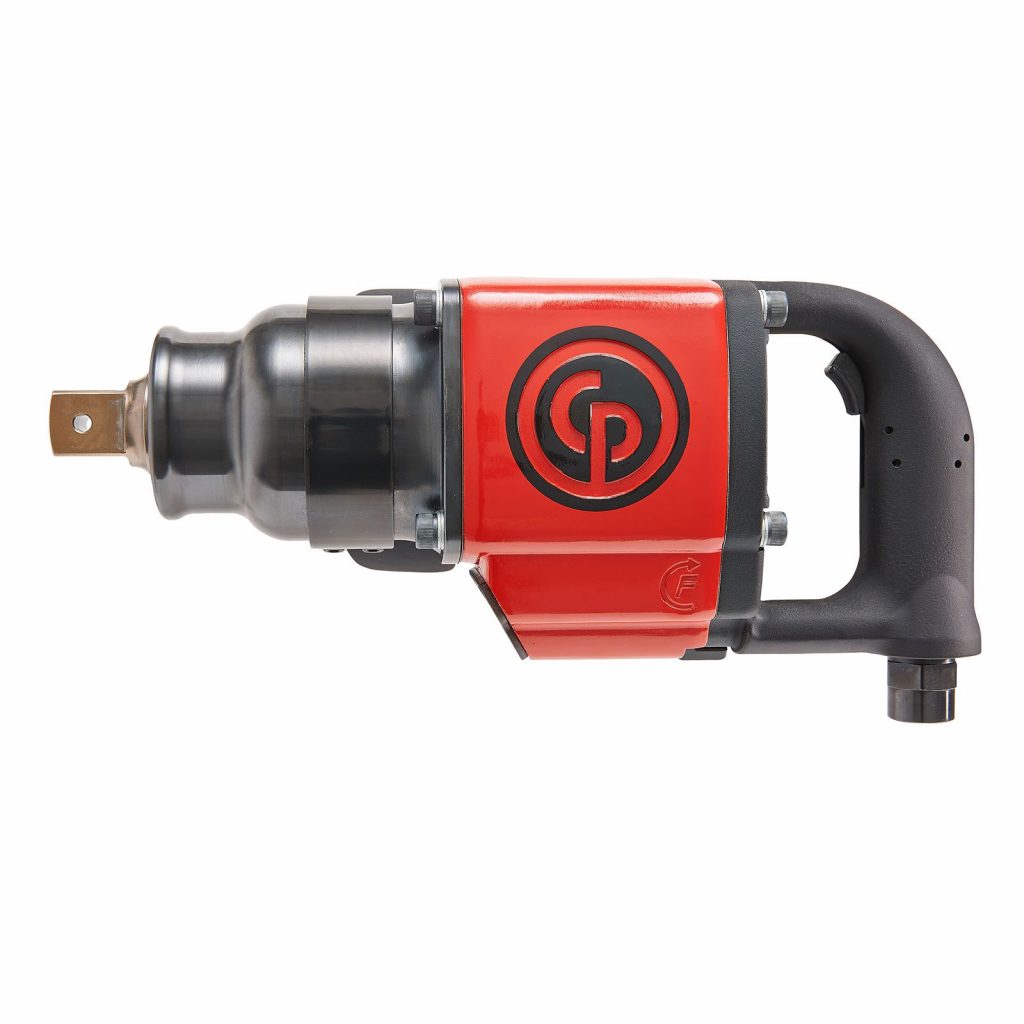

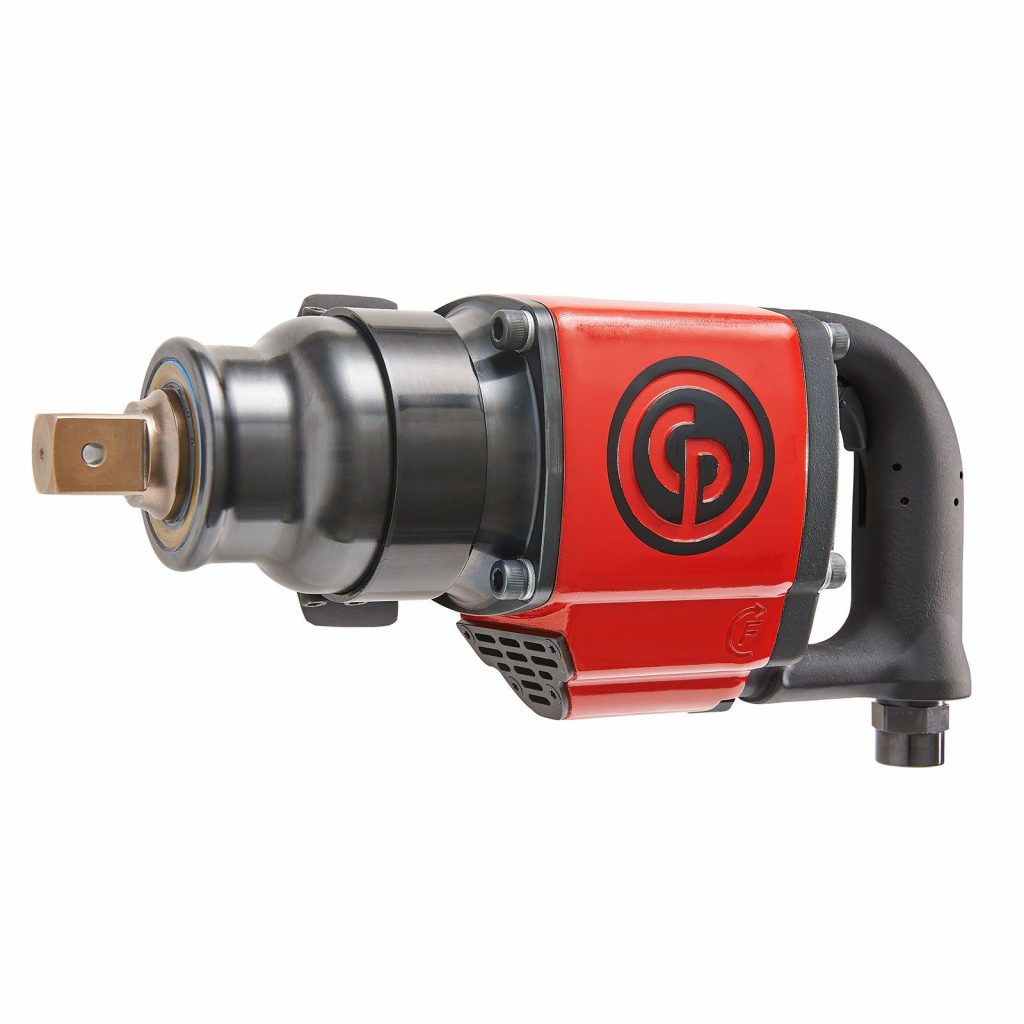

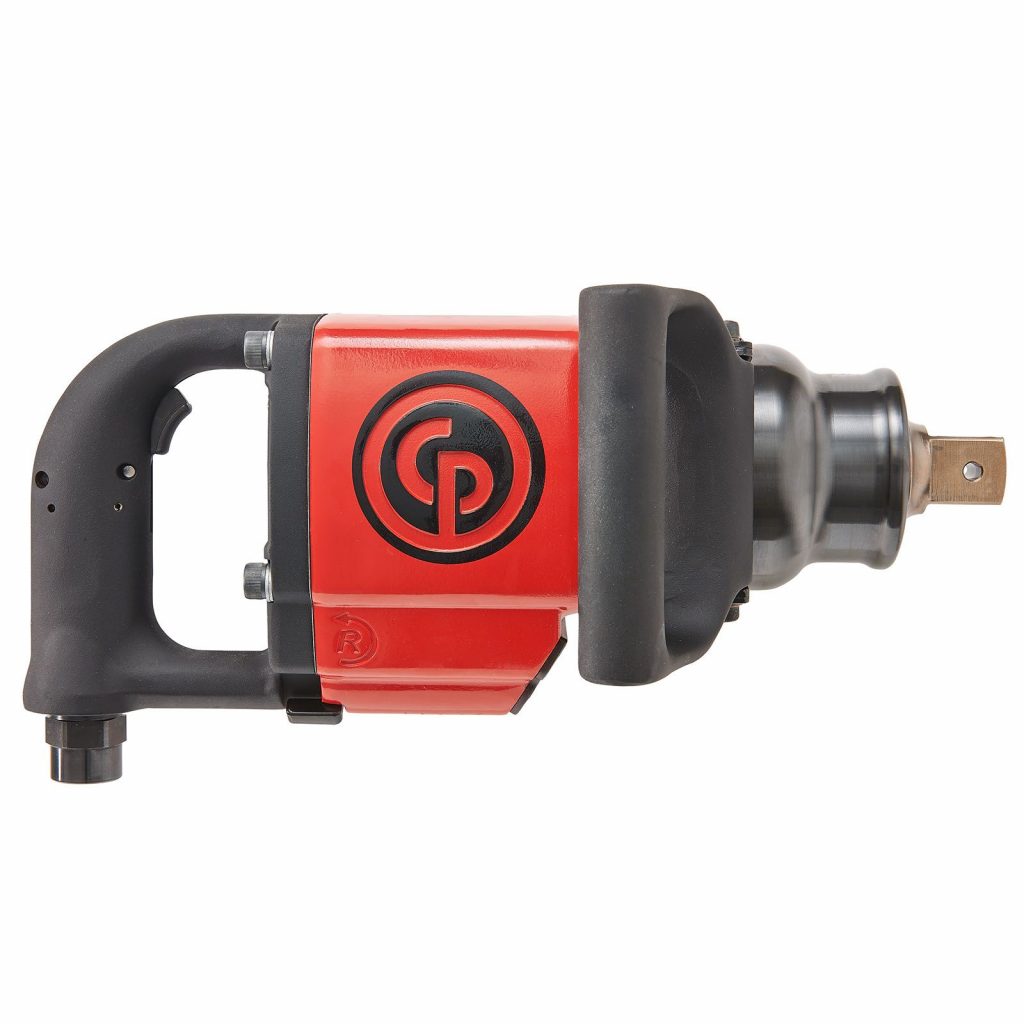

| Model |
CP0611-D28H |
|
| Part number |
6151590160 |
|
| Actual air consumption |
32 l/s |
68 cfm |
| Air inlet thread size |
1/2 “ |
|
| Blows per minute |
1020 |
|
| Bolt size |
M36 mm |
|
| Box dimensions |
505x240x145 mm |
|
| Clutch type |
2-jaw clutch |
|
| European Standards |
EN ISO 11148-6:2013 |
|
| Free speed |
3500 rpm |
|
| Free speed air consumption |
55 l/s |
|
| Handle type |
D-Handle |
|
| Length |
360 mm |
14.17 “ |
| Maximum Torque (reverse) |
3790 Nm |
2800 ft.lbs |
| Min. hose size |
|
1 “ |
| Net weight |
10.4 kg |
22.9 lb |
| Power/weight ratio |
364.4 Nm/kg |
122.3 ft.lb/lb |
| Side to center |
46 mm |
1.81 “ |
| Socket retainer |
Hole |
|
| Sound Power |
110 db(A) |
|
| Sound pressure |
99 db(A) |
|
| Square drive |
1 “ |
|
| Vibration |
18 m/s² |
|
| Vibration ISO |
ISO-28927-2 |
|
| Vibration uncertainty (K) |
4.1 m/s² |
|
| Working Torque Range (fwd) |
1220 – 2440 Nm |
900 – 1,800 ft.lbs |
